3000010~3000014

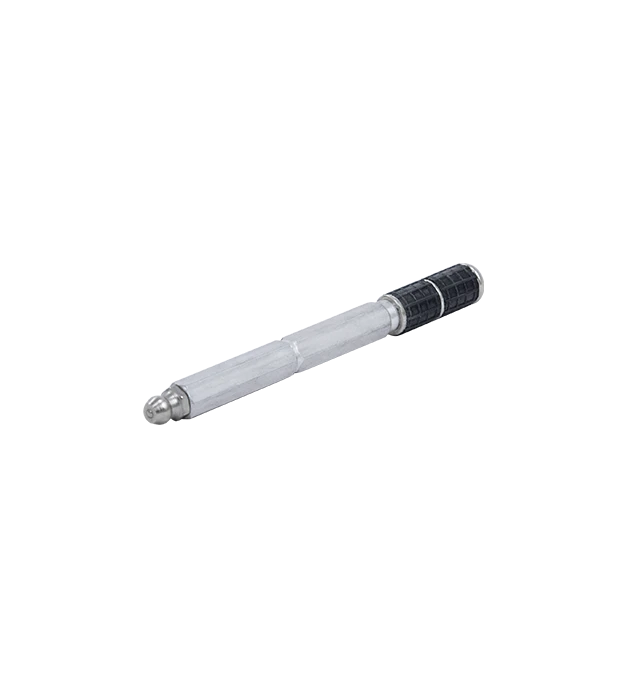

10mm Series Injection Packer
The 10mm Series Injection Packer is designed with Nitrile Butadiene Rubber, providing excellent wear resistance and strong adhesion. The screw is crafted from durable 10B21 material, ensuring long-lasting performance. We market our own products, utilizing premium materials and automated mechanical production to ensure consistent, stable quality.
Our 10mm Series Injection Packer is available in large quantities for both domestic and international markets. It is widely used in general construction as well as large-scale projects, making it a dependable choice for a variety of construction applications.
Feature
- Using NBR rubber material, it can be tightly combined with cement structure, and there will be no rebound when perfused.
- The rubber design has a cross rib, and the parallel and vertical faces of the cement are firm in four directions when tightened.
- Screw iron is 10B21, and the torsion strength is higher than that of ordinary iron.

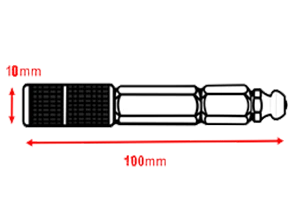

Specifications
| 10MM Series injection packer | ||
|---|---|---|
| Model | Width(mm) | Length(mm) |
| B-8 | 10 | 80 |
| B-10 | 10 | 100 |
| B-15 | 10 | 150 |
| B-20 | 10 | 200 |
| B-28 | 10 | 280 |
