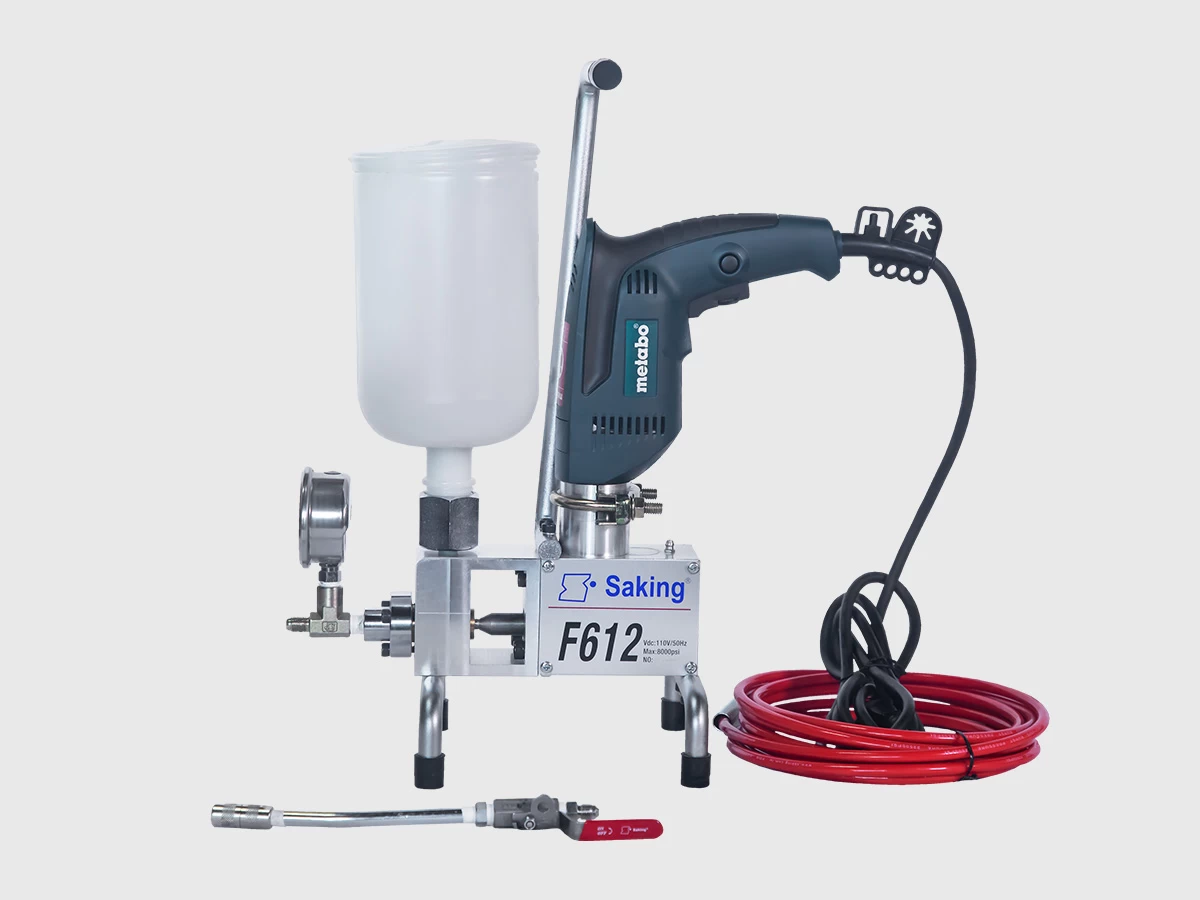

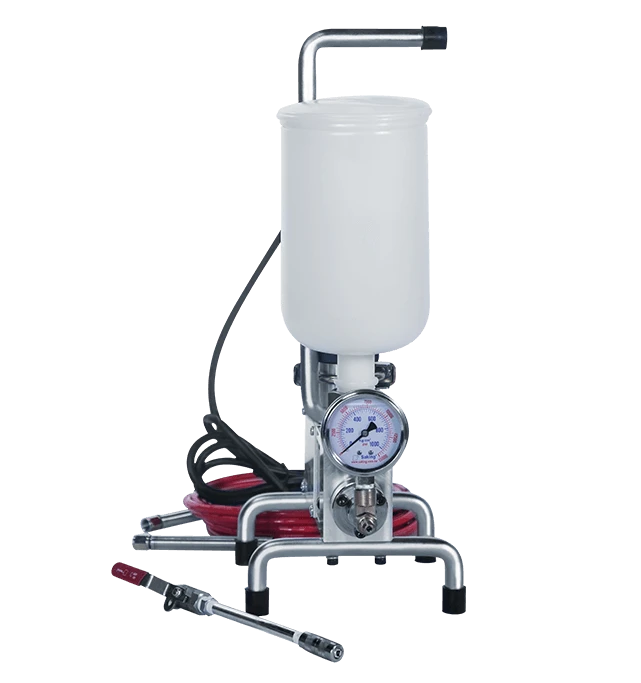

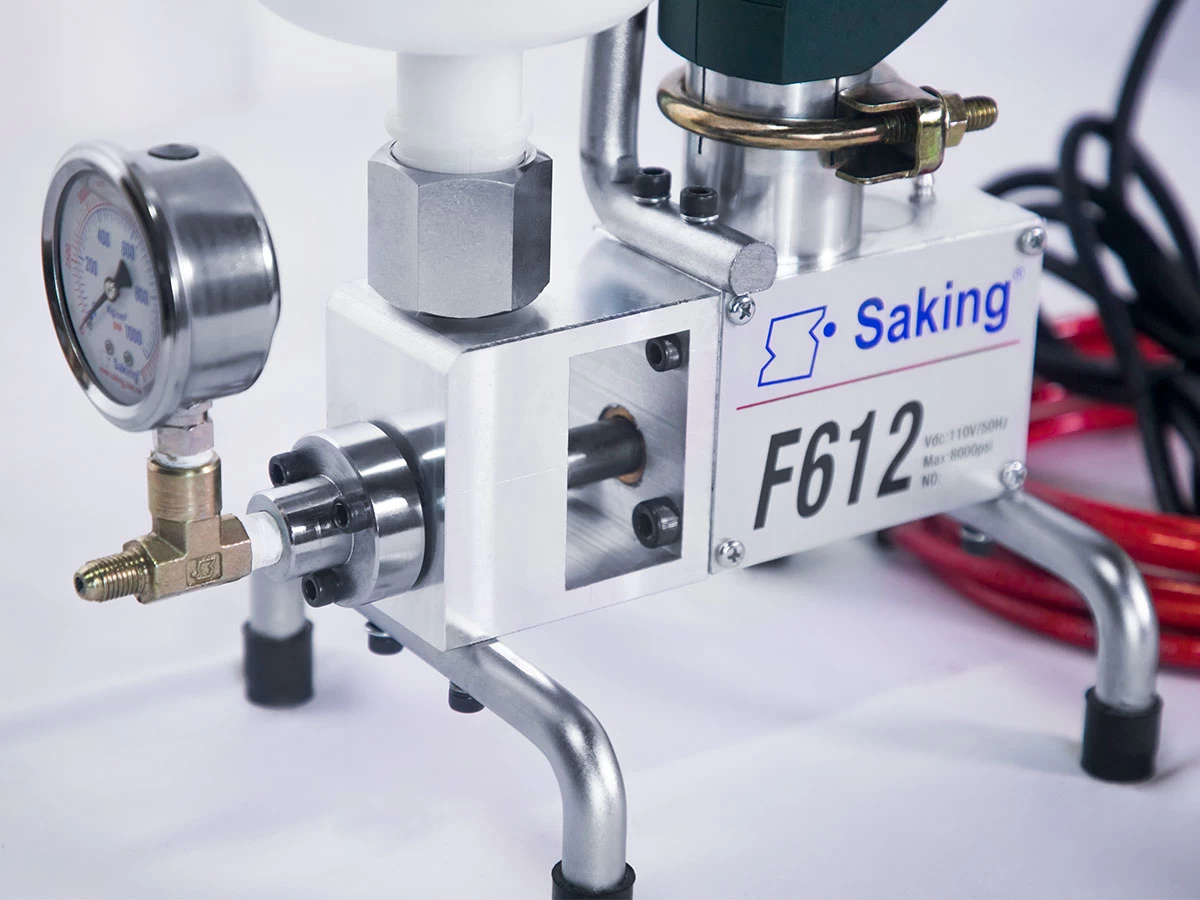

F-612 High Pressure Grouting Machine

  • Durable

  • 22500PSI

  • Easy to carry

The professional model with structural perfusion, high pressure does not need an air pressure source, is lightweight, can solve the inconvenience of the builder carrying heavy machinery, and is the best choice for professional water stop builders.
Suitable for basements, tunnels, bridges, and sites requiring high pressure.

F-612 High Pressure Grouting Machine
Features
  • Fast construction: Equipped with powerful high-pressure capabilities, it can achieve a working pressure of 5000 PSI within seconds, enabling faster completion of grouting work compared to other models and improving construction efficiency.

  • Lightweight design: The machine body weighs only 7.5 kilograms, making it a lightweight device. It is easy to carry and requires less effort, facilitating movement between different construction sites.Simple maintenance: no special training required, minimize down time.

  • Easy maintenance: F-512 High Pressure Grouting Machine is easy to maintain and does not require special training for maintenance. Unless there is a mechanical failure that needs to be repaired, it will not affect the construction progress.

  • Consistent pressure: The grouting materials used with the F-512 High Pressure Grouting Machine can effectively inject into micro cracks, ensuring effective sealing of water leakage problems.

  • Reservoir dam body grouting for water conservancy and hydropower projects, water tunnel crack blocking and seepage prevention, and anti-seepage reinforcement of concrete cracks in dam body.

  • Sealing and sealing construction of cracks, expansion joints, construction joints and structural joints of various buildings and underground concrete works.

  • Drilling and retaining wall sealing and reinforcement of geological drilling engineering.

Specifications
Item Value
Gross 7.5 kg
Max OutPut 22500 PSI
Star UP < 7500 PS
High-pressure pipe < 14000 PSI
On-off Valve < 18000 PSI
Butter Head < 16000 PSI
